To build a sculptural wall and make a splash

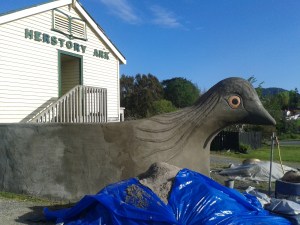

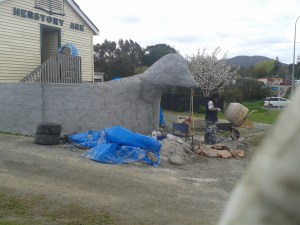

This has been my latest foray… The Ark has always needed a good boundary wall and I’ve always wanted a boat hull around it…. this is a photo record, hopefully self-explanatory. Short video walk-around of wall: https://www.youtube.com/watch?v=MA8sZXzcYCc

Ive used about 40  40kg bags of cement and 4 cubic metres of sand. wall is about 50 metres long. Yet to do the inside second coat, so that will take another maybe 6-10 bags of cement.

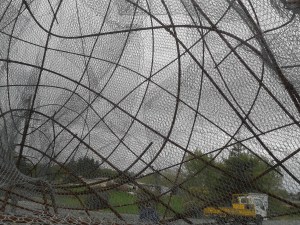

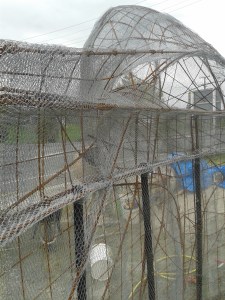

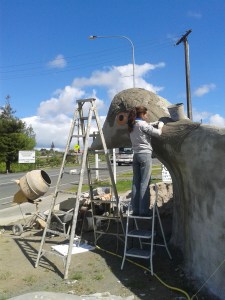

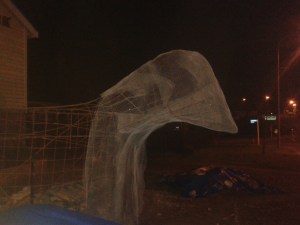

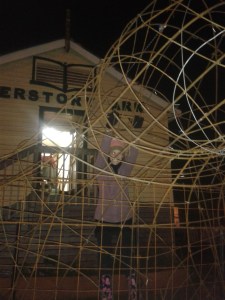

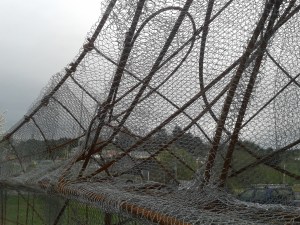

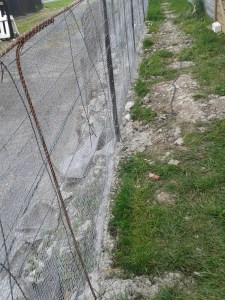

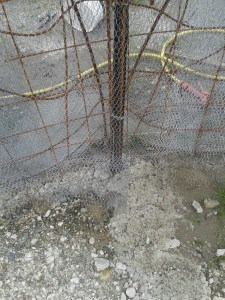

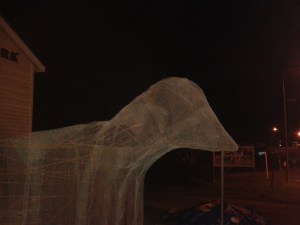

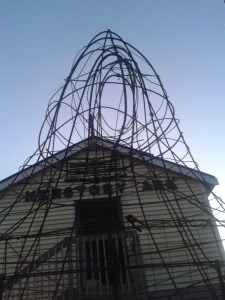

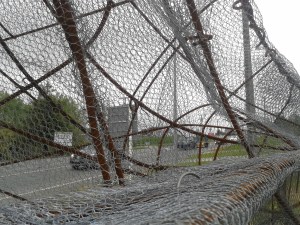

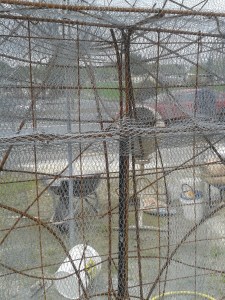

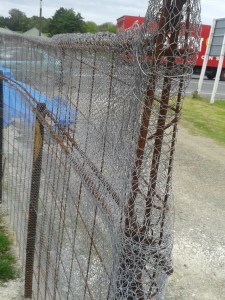

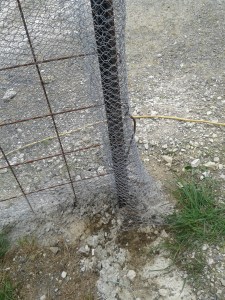

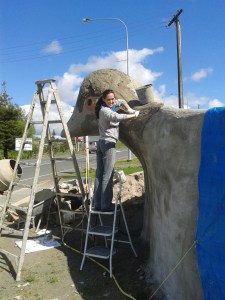

I tried a different reinforcing structure as it was mostly flat wall. Waratah steel fence posts (straight in the ground), with some L rebar wired on to give a footing at right angles to the wall (concreted in). and a coil of the famous ‘number 8’ fencing wire as the main horizontal reinforcing and support for the two layers of chickenwire. Quite minimalist! D10 rebar along the top. in curved higher front section I used 668 square mesh rebar sheets. Next time I’ll try a twin layer of 668 with chickenwire sandwiched between. More straight and flat, and way less work if I only have to tie the two sheets together at intervals instead of lacing the chickenwire onto each side. I think the plaster will go over the square mesh ok, as long as I use a thinnish first coat so it doesn’t sag. For this wall I did three coats, scratching with the plaster rake in between coats for good adhesion. third coat I sponge finished with sponge from an old seat!

More on this project later…

20140814_163501 20140814_180454 20140814_180503 20140814_183400 20140814_183413 20140814_183421 20140814_183559 20140814_183741 20140814_183807 20140814_183825 20140816_183500 20140816_184041 20140903_201309 20140903_201334 20141001_120220 20141002_151102 20141002_151108 20141002_151113 20141002_151117 20141002_151129 20141002_151154 20141002_151202 20141002_151232 20141002_151242 20141002_151245 20141002_151253 20141002_151257 20141002_151302 20141002_151306 20141002_151311 20141002_151313 20141002_151317 20141002_151320 20141002_151323 20141002_151332 20141002_151334 20141002_151337 20141002_151342 20141003_140524 20141007_145051 20141008_082154 20141008_082225 20141010_160929 20141010_160950 20141010_172145 20141010_181533 20141010_181537 20141017_072646 20141020_090905 20141020_125217 20141020_152151 20141020_152156 20141020_152239 20141021_081720 20141021_081755 20141021_081804 20141022_084412 20141022_084421 20141022_084426 20141022_084814 20141022_084823 20141022_084828 20141022_084834
